 Rectangular
Permanent Magnetic Chuck ( Permanent Mangetic Chuck ) |
 |
 |
 |
 |

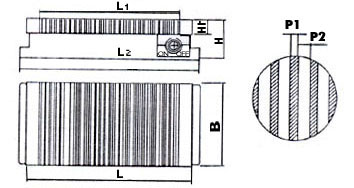

| Specification: |
| TYPE |
B |
L |
H |
P=P1+P2 |
| MCS10XX |
104 |
180-300 |
45 |
2-12 |
| MCS12XX |
125 |
200-400 |
45 |
2-12 |
| MCS15XX |
150 |
300-500 |
45 |
2-12 |
| MCS20XX |
200 |
300-600 |
50 |
2-12 |
| MCS25XX |
250 |
400-700 |
50 |
2-12 |
| MCS30XX |
300 |
400-700 |
55 |
2-12 |
|
|
The permanent-magnetic chuck
is applied to holding workpiece of magnetic material to begroud on
surface grinding machine and universal tool grinder electrical process
machine ect. and can also be used as line-drawing tools of benchwork
for scraping and grinding.
The permant-magnetic
chuck doesn't need power supply and will not cause any unexpected
accident because of failure of power supply,therefore,it is being
widely used. |
|
| |
|
